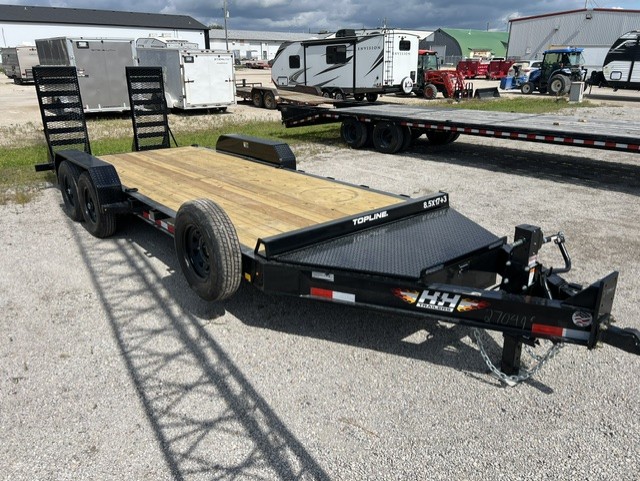

2027 H&H 7 X 20(17+3) TopLine I-beam HD Equipment Trailer 14K
2027
{{ galleryProps.activeIndex + 1 }}/14
CALL FOR PRICE
Year:
2027
Model:
7 x 20
Axle Capacity:
7000lbs
VIN:
5JWUP262XVR624662
Floor Length:
312" or 26' Total Length
Width:
82.25" Between Fenders
Height:
22" Deck Height
Weight:
3480
GVWR:
15400
Payload Capacity:
11920
Stock #:
27049
Description
FACTORY MODEL H-BIT8220-154
TOPLINE® I-Beam Equipment Trailers are engineered for superior strength, versatility, and long-lasting performance. Designed with premium components and heavy-duty features, these equipment trailers deliver exceptional reliability for hauling your toughest loads.
Key Benefits
8" I-Beam Frame – Built for Strength
The rugged 8" I-Beam frame provides unmatched structural support, ensuring long-term durability even under heavy load conditions.
3' Self-Cleaning Dovetail – Effortless Loading
The 3' self-cleaning dovetail prevents debris buildup, offering smoother…
FACTORY MODEL H-BIT8220-154
TOPLINE® I-Beam Equipment Trailers are engineered for superior strength, versatility, and long-lasting performance. Designed with premium components and heavy-duty features, these equipment trailers deliver exceptional reliability for hauling your toughest loads.
Key Benefits
8″ I-Beam Frame – Built for Strength
The rugged 8″ I-Beam frame provides unmatched structural support, ensuring long-term durability even under heavy load conditions.
3′ Self-Cleaning Dovetail – Effortless Loading
The 3′ self-cleaning dovetail prevents debris buildup, offering smoother equipment loading and unloading in any working environment.
Stand-up Steel Ramps – Dependable Access
Durable stand-up steel ramps provide easy and reliable access for loading a wide range of equipment, folding out of the way when not in use.
Heavy Duty Bulkhead with Integrated Tie-Down Points – Secure Your Load
The heavy-duty front bulkhead includes integrated tie-down points, giving you multiple strong and convenient options for safely securing cargo.
3/4″ D-Rings, Banjo Tie-Downs, and Oversized Stake Pockets – Ultimate Tie-Down Flexibility
Heavy-duty 3/4″ D-rings, banjo tie-downs, and oversized stake pockets offer versatile and secure tie-down options to accommodate various equipment sizes.
Integrated Steel Toolbox with Light – Organized and Accessible
An integrated steel toolbox with built-in lighting keeps your gear organized and easily accessible, even in low-light conditions.
8.5 x 20 (17+3) Topline I-Beam Industrial Equipment Trailer, 15.4K
GVWR (lbs) 15400 lbs
GAWR (lbs/axle) 7000 lbs/axle
Curb Weight 3480 lbs
Payload 11920 lbs
Overall Width 8.5″
Length 20′
Overall Length 312″
Deck Height 22″
Coupler Height 17-26
Length Ramp 60
Height Coupler 17-26
Height Overall 35″
Height Deck 22″
Width Between Fender 82.25″
Width Ramp 24
Type OPEN
Axle (2) 7000 lb. Slipper Spring Brake
Breakaway Battery, Switch, and Lanyard
Bulkhead HD Bulkhead with Integrated Tie-Down Points
Connector Plug Round 7-pin Blade
Coupler Adjustable 4-Bolt Pintle Ring
Crossmembers 3″ Steel Channel
Decking 2″ Pressure Treated Pine, Board Retainers
Dovetail 3′ Self Cleaning
Exterior Finish Industrial Grade Polymer Finish
Exterior Lights Full LED, DOT Compliant
Exterior Storage Large Toolbox with Interior Light and Gas Spring, Spare Tire Carrier
Fenders Double Break Tread Plate
Frame 8″, 13 lb/ft I-Beam
Hubs Easy Lube
Ramp(s) 24″ Wide HD Mesh Covered Stand-Up with Spring Assist
Safety Chains DOT Compliant
Tie Downs (4) 3/4″ D-Rings, Banjo Tie-Downs, Oversize 5″ x 1/4″ Thick Stake Pockets
Tires ST235/80R16E 10-PLY
Tongue 12″ Extension, 8″ Flange, 13 lb/ft I-Beam
Tongue Jack 12K, 2-Speed Drop Leg
Warranty Limited 3-Year Warranty
Wheels 16″, 8-Lug Steel
Sealed Wiring Harness
Some pictures and videos are for reference only and may not be of the exact trailer in stock.
