2026 Southland 7 x 22(16+6) Tilt Equipment Trailer 16K
2026
SOLD
{{ galleryProps.activeIndex + 1 }}/15
CALL FOR PRICE
Year:
2026
Manufacturer:
Southland
Model:
7 X 22 (16+6) Tilt
Axle Capacity:
8000 lbs
VIN:
2SFKC6367T1163681
Floor Length:
22'
Width:
82" Between Fenders
Weight:
3807 Lbs
GVWR:
17461 Lbs
Payload Capacity:
13654 Lbs
Stock #:
26328
Description

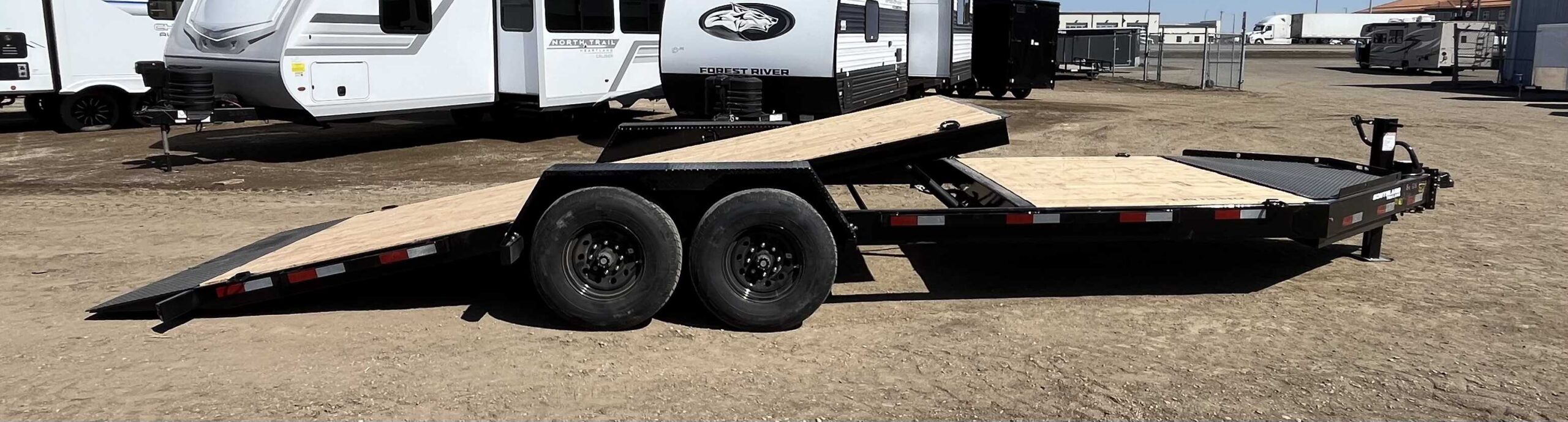

The 2026 Southland 7' x 22' LBAT8-616 is a heavy-duty split-deck tilt equipment trailer designed for transporting machinery like skid steers and excavators. It features a total deck length of 22 feet, configured with a 16-foot tilting section and a 6-foot stationary front deck.
Key Specifications
GVWR: 17,461 lbs.
Payload Capacity: Approximately 13,654 lbs.
Curb Weight: Approximately 3,807 lbs.
Axles: Dual 8,000 lb. Lippert spring axles with electric self-adjusting brakes.
…
The 2026 Southland 7′ x 22′ LBAT8-616 is a heavy-duty split-deck tilt equipment trailer designed for transporting machinery like skid steers and excavators. It features a total deck length of 22 feet, configured with a 16-foot tilting section and a 6-foot stationary front deck.
Key Specifications
GVWR: 17,461 lbs.
Payload Capacity: Approximately 13,654 lbs.
Curb Weight: Approximately 3,807 lbs.
Axles: Dual 8,000 lb. Lippert spring axles with electric self-adjusting brakes.
Deck Dimensions: 82″ width between fenders.
Construction: Heavy-duty 8″ x 2″ HSS structural tubing frame with 3″ I-beam crossmembers on 16″ centers.
Standard Features
Tilt System: Hydraulically dampened cushion cylinder with a lock-out valve for smooth loading.
Decking: High-density (HD) Fir plank decking.
Jack & Coupler: 12,000 lb. side-wind bolted drop-leg jack and a 21,000 lb. Demco adjustable ball coupler.
Storage: 3/16″ steel drive-over A-frame toolbox with a lockable, spring-assisted lid.
Electrical: Fully enclosed wiring with a cold-weather 7-wire RV plug and a complete LED lighting package.
Finish: Steel components are shot-blasted and finished with PPG polyurethane paint with a two-way hardener for durability
