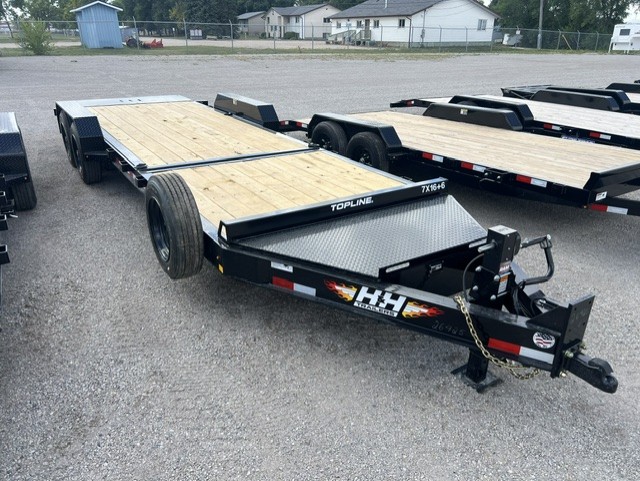

2026 H&H 7 x 16+6 Topline I-Beam Tilt Bed Equipment Trailer 16K
2026
{{ galleryProps.activeIndex + 1 }}/20
Our Price : $24,995.00
Sale Price : $22,995.00
Year:
2026
Axle Capacity:
8000 lbs
VIN:
5JWUP2829TN624654
Floor Length:
336" or 28' Total Length
Width:
82" Between Fenders
Height:
22" Deck Height
Weight:
4411
GVWR:
17600
Payload Capacity:
13189
Stock #:
26425
Description
Factory Model# H-BTE82166-176
TOPLINE® I-Beam Tilt Trailer
Engineered for serious hauling, the TOPLINE® I-Beam Tilt Trailers are the premier choice for anyone needing a rugged tilt trailer for heavy-duty equipment transport. Built with an 8″ I-Beam frame, these equipment trailers offer strength, innovation, and ease of use.
Factory Ordered With These Options:
Spare Tire
Adjustable 2 5/16" Coupler
Key Benefits
8" I-Beam Frame – Maximum Strength
The durable 8" I-Beam frame construction delivers superior strength…
Factory Model# H-BTE82166-176
TOPLINE® I-Beam Tilt Trailer
Engineered for serious hauling, the TOPLINE® I-Beam Tilt Trailers are the premier choice for anyone needing a rugged tilt trailer for heavy-duty equipment transport. Built with an 8″ I-Beam frame, these equipment trailers offer strength, innovation, and ease of use.
Factory Ordered With These Options:
Spare Tire
Adjustable 2 5/16″ Coupler
Key Benefits
8″ I-Beam Frame – Maximum Strength
The durable 8″ I-Beam frame construction delivers superior strength for hauling heavy equipment safely and reliably.
Recessed, A-Frame Tool Box with Interior Light – Organized Storage
Keep your tools and gear secure and accessible with the recessed, illuminated A-frame toolbox.
Easy-Lock Tilt Bed Latch – Hassle-Free Operation
The easy-lock tilt bed latch ensures quick, secure loading and unloading with efficient setup.
Slipper Spring Suspension – Smooth Towing
The slipper spring suspension system provides reliable stability and a smoother ride across rough terrain.
82X16+6 Topline I-Beam Tilt Equipment Trailer, 17.6k
GVWR (lbs) 17600 lbs
GAWR (lbs/axle) 8000 lbs/axle
Curb Weight 4420 lbs
Payload 13180 lbs
Width 82″
Length 16′
Overall Length 336″
Deck Width 80″
Deck Height 22″
Coupler Height 17-26
Height Coupler 17-26
Height Overall 35″
Height Deck 22″
Width Interior 80″
Width Between Fender 82″
Width Tilting Deck 73.75
Load Angle 14.5
Type OPEN
Axle (2) 8000 lb. Slipper Spring Brake
Breakaway Battery, Switch, and Lanyard
Bulkhead HD Bulkhead with Integrated Tie-Down Points
Connector Plug Round 7-pin Blade
Coupler Adjustable Pintle Ring
Crossmembers 3″ x 2″ Tube, 16″ On-Center
Decking 2″ Pressure Treated Pine, 6′ Stationary, Board Retainers
Dovetail Diamond Plate Knife Edge
Exterior Finish Industrial Grade Polymer Finish
Exterior Lights Full LED, DOT Compliant
Exterior Storage Large Toolbox with Interior Light and Gas Spring, Spare Tire Carrier
Fenders Double Break Tread Plate
Frame 8″, 13 lb/ft I-Beam, Tilting Deck – 6″ x 4″ x 5/16″ Reinforced Angle
Hubs Oil Bath
Hydraulic Components Easy Locking Tilt Bed Latch, Hydraulic Cushion Load Cylinder with Stop Valve
Safety Chains DOT Compliant
Tie Downs (4) 3/4″ D-Rings, Oversize 5″ x 1/4″ Thick Stake Pockets
Tires 215/75R17.5J 18-PLY
Tongue 8″ Flange, 13 lb/ft I-Beam
Tongue Jack 12K, 2-Speed Drop Leg
Warranty Limited 3-Year Warranty
Wheels 17.5″, 8-Lug Steel
Sealed Wiring Harness
Some pictures and videos are for reference only and may not be of the exact trailer in stock.
